TYPE 3612

DISC WHEELS WITH THREADED INSERTS RECESSED ON THE WORKPIECE SIDE

Grinding wheels TYPE 3612 are a group of wheels designed for working with face surface, individually or in pairs. The grinding wheels have threaded inserts on their non-working face for clamping on the grinder. They are widely used in bearing industry.

ANDRE TYPE 3612 resin bonded grinding wheels are mainly manufactured on the basis of brown aluminium oxide (95A), white aluminium oxide (99A) and black silicon carbide (98C). For special applications, ANDRE also offers other combinations of abrasive grains with excellent performance characteristics.

H < 0,67D
3612 - D × T × H - no. pic.
Examples of labeling:
3612 - 600x75x305-95A80NBMOD-35-PP/36/042

Download


Parameters of the offered grinding wheels of the presented type

TYPE 3612

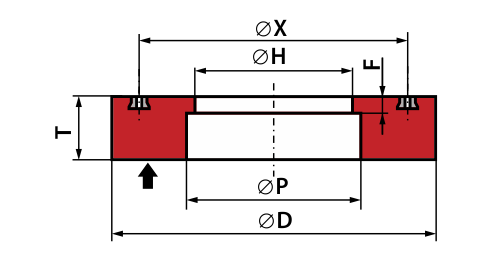

Dimensions [mm] Angle scale and number of thread inserts No. pic.
D T H P F X Height of threaded insert
450 70 138 200 55 224
362
14 60° 6 x M10
30° 12 x M10
PP/36/152
600 75 305 315 55 370,5
530,5
12 60° 6 x M16 x 1,5
30° 12 x M16 x 1,5
PP/36/042

*) Other parameters (dimensions, profiles) available according to individual arrangements.

The presented abrasive tools ANDRE ABRASIVE ARTICLES have been manufactured based on knowledge and long-term experience of cooperation with customers.

Since the beginning of its activity, ANDRE company has been focusing on high quality of its products. At ANDRE, every effort is made to ensure that products meet customers' individual needs and satisfy their highest expectations even in the most difficult grinding operations.

Abrasive tools by ANDRE ABRASIVE ARTICLES are safe

ANDRE gradually improves its technological process to offer abrasive tools with increasingly better usability and a high safety factor in accordance with the applicable standards. Membership in organizations of leading abrasive tool manufacturers and regular certification fully confirm that.
