TYPE 3603

DISC WHEELS WITH THREADED INSERTS RELIEVED ON ONE SIDE

Grinding wheels with threaded inserts TYPE 3603 are a group of wheels designed for working with face surface, individually or in pairs. The grinding wheels have threaded inserts on their non-working face for clamping on the grinder.
They are widely used in the machine industry, for example in the production of springs.

ANDRE TYPE 3603 resin bonded grinding wheels are mainly manufactured on the basis of brown aluminium oxide (95A). For special applications, ANDRE also offers other combinations of abrasive grains with excellent performance characteristics.

H < 0,67D
3603 - D × T × H - no. pic.
Examples of labeling:
3603 - 400x58x220-95A60K7B-35-PP/3603/705

Download


Parameters of the offered grinding wheels of the presented type


TYPE 3603

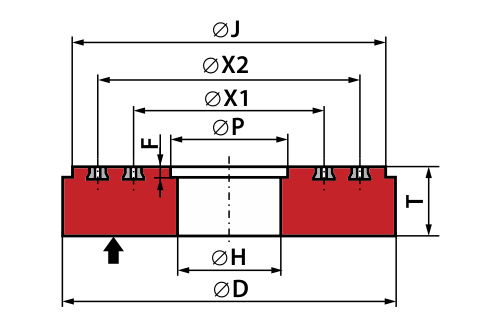

Dimensions [mm] Angle scale and number of thread inserts No. pic.
D J T H P F U X Height of threaded insert
450 433 70 138 151 8,2 61,8 224

362

14 60° 6 x M10

30° 12 x M10

PP/36/066

*) Other parameters (dimensions, profiles) available according to individual arrangements.
